Description
This medium-size belt-driven power sprayer with automatic pressure unloader usually supports one large-flow or two medium-flow spray guns paired with 10 or 13 mm high-pressure hose in range of 100~200M length.It is suitable for single or two-person pest control spraying in large gardens, vegetable farms, rice fields, large-size greenhouses, and hill areas where grow fruit tree.
It is also suitable for cleaning spray on large equipment.
The AP automatic pressure unloader valve also has the function of saving energy and protecting pipelines.
Application
-
Agricultural applications
Widely used in crop protection, pest and disease control, fertilization, and weed control, for spraying insecticides, herbicides, fungicides, and fertilizers in small to medium size of flat land crops, orchards, trellis plantings, nurseries, and greenhouses. -
Horticulture and landscaping
Suitable for small to medium size of gardens, lawns, and green lands, mainly for spraying water, fertilizers, herbicides, and other chemicals to nourish plants, control weeds, and maintain the overall health of flowers and plants. -
Pest control
Commonly used for pest control in small to medium size of areas, including spraying insecticides and other chemical agents to eliminate or control pests such as mosquitoes, flies, ants, termites, and cockroaches
ACCESSESORIES
Specification
|
Model
|
Flow rate
(L/min)
|
Pressure
(kg/cm2)
|
(rpm)
|
(HP)
|
Wieight
(kg)
|
| TS-100AP | 54.0 | 50 | 700 | 7.5 | 19.0 |
| 61.7 | 800 | 10.0 | |||
| 77.1 | 1000 | 2.5 |

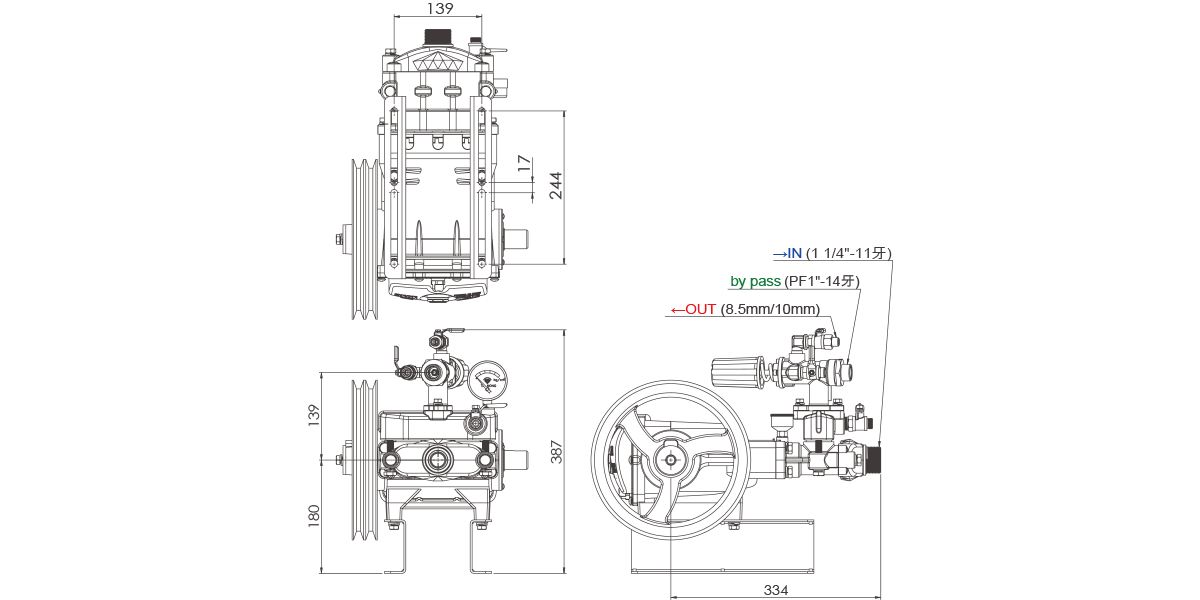

Dimensions
