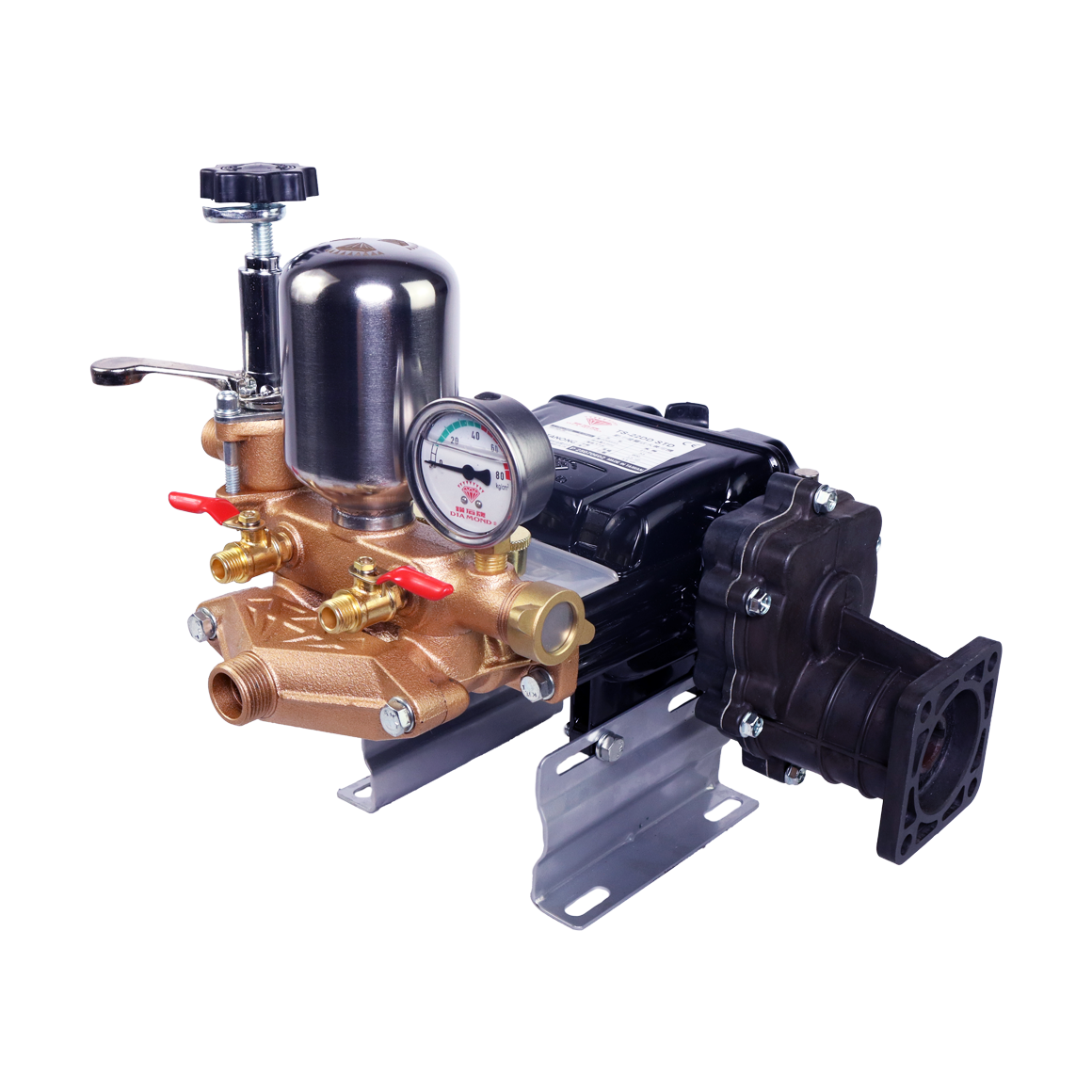

TS-22 DD STD HTP Power Sprayer (Derct Drive)
No.TS-22 DD STD
This small to medium-size direct-drive power sprayer is equipped with a gearbox and manual pressure regulator, usually supports a single or two spray guns paired with 7.5 or 8.5 mm high-pressure hose in range of 100 to 200 meters in length.
This small to medium-size direct-drive power sprayer is equipped with a gearbox and manual pressure regulator, usually supports a single or two spray guns paired with 7.5 or 8.5 mm high-pressure hose in range of 100 to 200 meters in length.
It is suitable for single or two-person operation in small to medium-size gardens, vegetable farms, medium-size greenhouses, as well as for spraying in fruit tree fields.
It can be directly connected to a fast engine or a two-pole motor, making its overall size smaller and providing excellent power transmission efficiency.
While no belt and pulley are needed, it is safer to operate.
Application
-
Agricultural applications
Widely used in crop protection, pest and disease control, fertilization, and weed control, for spraying insecticides, herbicides, fungicides, and fertilizers in small flat land crops, orchards, trellis plantings, nurseries, and greenhouses. -
Horticulture and landscaping
Suitable for small gardens, lawns, and green lands, mainly for spraying water, fertilizers, herbicides, and other chemicals to nourish plants, control weeds, and maintain the overall health of flowers and plants. -
Pest control
Commonly used for pest control in small areas, including spraying insecticides and other chemical agents to eliminate or control pests such as mosquitoes, flies, ants, termites, and cockroaches.
ACCESSESORIES
Specification
|
Model
|
Flow rate
(L/min)
|
Pressure
(kg/cm2)
|
(rpm)
|
(HP)
|
Wieight
(kg)
|
| TS-22DD STD | 16.4 | 45 | 900 | 2.0 | - |
Dimentions
